Zinc Selenide (ZnSe)

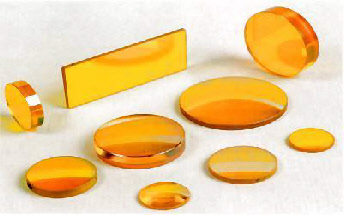

Brightever can supply Zinc Selenide - ZnSe products including ZnSe windows,  ZnSe lenses and  ZnSe prisms according to your specifications, with the size up to   250×200×12mm.

 Products Specifications

    Shapes :                                                                     Circular: windows, spherical lenses

                                                                                     Rectangular: windows

   Maximum Dimension :                                                 Circular: ∮250×15mm

                                                                                     Rectangular: 250×200×15mm

   Tolerance :                                                                 Diameter: +/- 0.05mm

                                                                                     Length & Width: +/- 0.05mm

                                                                                     Thickness: +/- 0.05mm

   Surface Quality :                                                         Plano blanks: as cut

                                                                                     Polished windows: to customer

   [Note]: More special requirements could be discussed individually.

Coating:

a) BBAR coating for 8~12 , Tave≥95%

b) AR coating at 10.6 , T≥99%
